使用Ceph作为OpenStack的统一存储解决方案
使用Ceph作为OpenStack的统一存储解决方案
2019-06-04
文章目录
前文列表
OpenStack Train版安装
② Ceph版本选择与安装
③ Ceph—RBD块设备介绍与创建
要将Ceph块设备与OpenStack一起使用，必须有权访问正在运行的Ceph存储群集
当前openstack环境与ceph集群环境在相同的网段中
统一存储解决方案
OpenStack 使用 Ceph 作为后端存储可以带来以下好处：
不需要购买昂贵的商业存储设备，降低 OpenStack 的部署成本
Ceph 同时提供了块存储、文件系统和对象存储，能够完全满足 OpenStack 的存储类型需求
RBD COW 特性支持快速的并发启动多个 OpenStack 实例
为 OpenStack 实例默认的提供持久化卷
为 OpenStack 卷提供快照、备份以及复制功能
为 Swift 和 S3 对象存储接口提供了兼容的 API 支持
在生产环境中，我们经常能够看见将 Nova、Cinder、Glance 与 Ceph RBD 进行对接。除此之外，还可以将 Swift、Manila 分别对接到 Ceph RGW 与 CephFS。Ceph 作为统一存储解决方案，有效降低了 OpenStack 云环境的复杂性与运维成本。

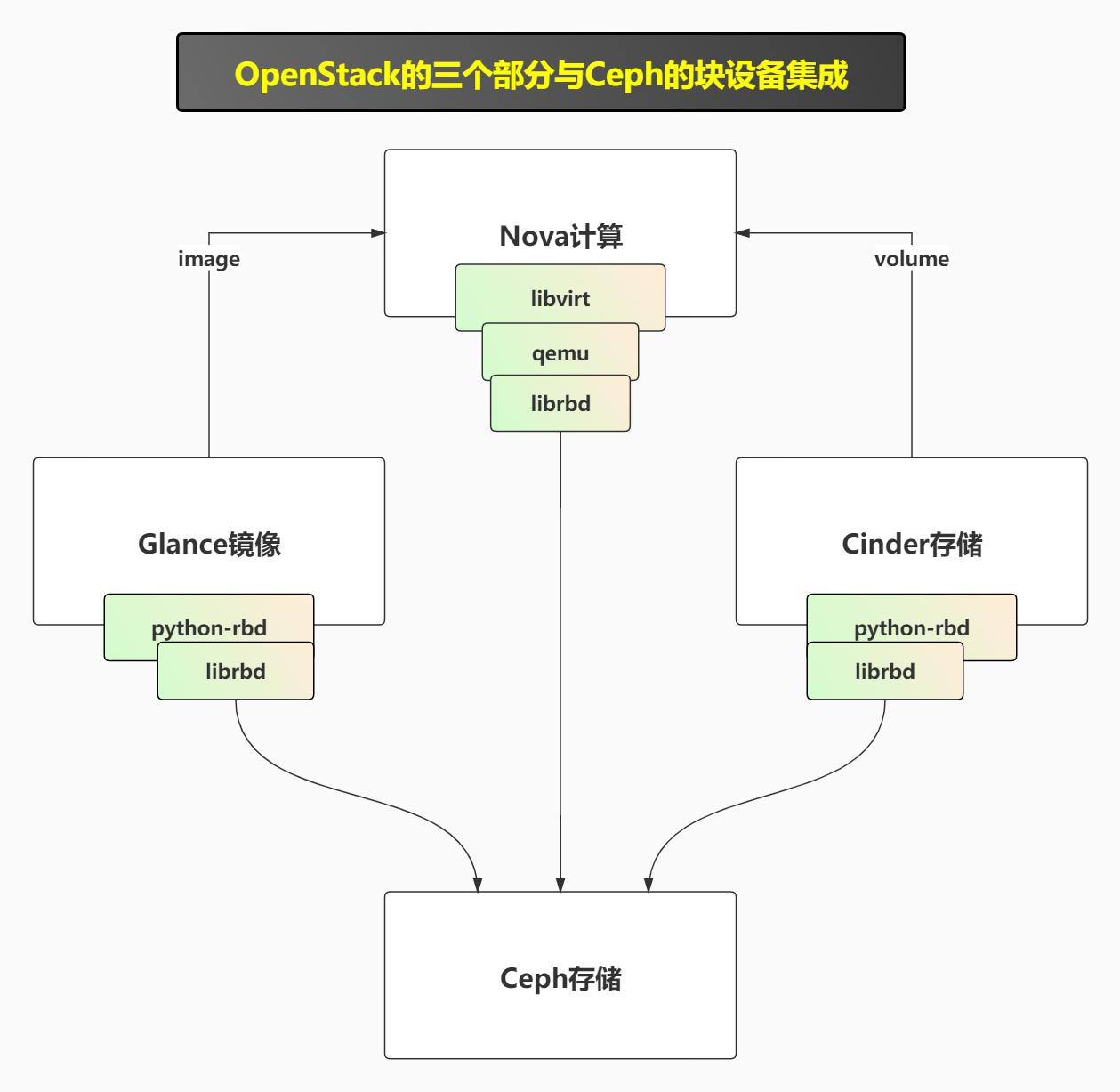

将三个重要的OpenStack服务：Cinder（块存储）、Glance（镜像）和Nova（虚拟机虚拟磁盘）与Ceph集成。
一、Ceph RBD和Openstack集群的基础配置
1. 需求说明
glance 作为openstack中镜像服务，支持多种适配器，支持将镜像存放到本地文件系统，http服务器，ceph分布式文件系统，glusterfs和sleepdog等开源的分布式文件系统上，本文，通过将讲述glance如何和ceph结合。
目前glance采用的是本地filesystem的方式存储，存放在默认的路径/var/lib/glance/images下，当把本地的文件系统修改为分布式的文件系统ceph之后，原本在系统中镜像将无法使用，所以建议当前的镜像删除，部署好ceph之后，再统一上传至ceph中存储。
nova 负责虚拟机的生命周期管理，包括创建，删除，重建，开机，关机，重启，快照等，作为openstack的核心，nova负责IaaS中计算重要的职责，其中nova的存储格外重要，默认情况下，nova将instance的数据存放在/var/lib/nova/instances/%UUID目录下，使用本地的存储空间。使用这种方式带来的好处是:简单，易实现，速度快，故障域在一个可控制的范围内。然而，缺点也非常明显：compute出故障，上面的虚拟机down机时间长，没法快速恢复，此外，一些特性如热迁移live-migration,虚拟机容灾nova evacuate等高级特性，将无法使用，对于后期的云平台建设，有明显的缺陷。对接 Ceph 主要是希望将实例的系统磁盘文件储存到 Ceph 集群中。与其说是对接 Nova，更准确来说是对接 QEMU-KVM/libvirt，因为 librbd 早已原生集成到其中。
Cinder 为 OpenStack 提供卷服务，支持非常广泛的后端存储类型。对接 Ceph 后，Cinder 创建的 Volume 本质就是 Ceph RBD 的块设备，当 Volume 被虚拟机挂载后，Libvirt 会以 rbd 协议的方式使用这些 Disk 设备。除了 cinder-volume 之后，Cinder 的 Backup 服务也可以对接 Ceph，将备份的 Image 以对象或块设备的形式上传到 Ceph 集群。
2.原理解析

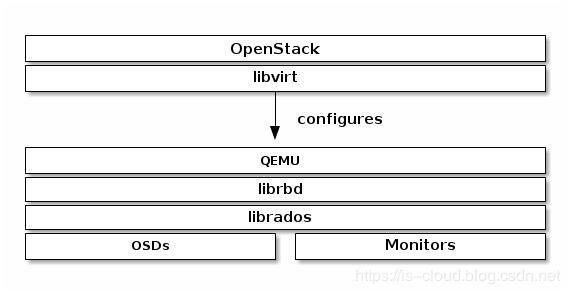

使用ceph的rbd接口，需要通过libvirt，所以需要在客户端机器上安装libvirt和qemu，关于ceph和openstack结合的结构如下，同时，在openstack中，需要用到存储的地方有三个:
glance的镜像，默认的本地存储，路径在
/var/lib/glance/images目录下，nova虚拟机存储，默认本地，路径位于
/var/lib/nova/instances目录下，cinder存储，默认采用LVM的存储方式。
在cephnode01管理节点上操作
在创建池之前要设置一下每个OSD的最大PG 数量
[root@cephnode01 my-cluster]# vim ceph.conf[global]mon_max_pg_per_osd = 300#将修改的配置push到集群中其他节点ceph-deploy --overwrite-conf config push cephnode01 cephnode02 cephnode03 #重启ceph-mgr服务使参数修改生效systemctl restart ceph-mgr.target
3. 为 Glance、Nova、Cinder 创建专用的RBD Pools池并初始化
1、ceph默认创建了一个pool池为rbd[root@cephnode01 my-cluster]# ceph osd lspools rbd----------------------------------- 2、为 Glance、Nova、Cinder 创建专用的 RBD Pools，并格式化 # glance-api ceph osd pool create images 64 64rbd pool init images # cinder-volume ceph osd pool create volumes 64 64rbd pool init volumes # cinder-backup [可选]ceph osd pool create backups 64 64rbd pool init backups # nova-compute ceph osd pool create vms 64 64rbd pool init vms----------------------------------- 3、查看pool的pg_num和pgp_num大小 ceph osd pool get [pool_sname] pg_num pg_num: 64ceph osd pool get [pool_sname] pgp_num pgp_num: 64----------------------------------- 4、查看ceph中的pools;忽略之前创建的pool[root@cephnode01 my-cluster]# ceph osd lspools...12 volumes13 images14 backups15 vms [root@cephnode01 my-cluster]# ceph osd pool stats...pool volumes id 12 nothing is going on pool images id 13 nothing is going on pool backups id 14 nothing is going on pool vms id 15 nothing is going on
4. 配置openstack节点与ceph的ssh连接
#glance-api，cinder-volume，nova-compute和 cinder-backup;cat >>/etc/hosts << EOF192.168.0.10 controller192.168.0.20 computel01192.168.0.40 cinder01EOF-----------------------------------#配置下发ssh秘钥远程连接for ip in 10 20 40 ;do sshpass -p123456 ssh-copy-id -o StrictHostKeyChecking=no 192.168.0.$ip ;done-----------------------------------#将ceph的yum源下发到openstack各个客户端节点for ip in 10 20 40 ;do sshpass -p123456 scp -rp /etc/yum/ 192.168.0.$ip ;done yum makecache
5. 为OpenStack的节点安装Ceph客户端
5.1 配置openstack客户端
#glance、nova、cinder作为ceph的客户端，需要有ceph的配置文件[root@cephnode01 my-cluster]# ceph-deploy install controller computel01 cinder01[root@cephnode01 my-cluster]# ceph-deploy --overwrite-conf admin controller computel01 cinder01[root@cephnode01 ~]# scp /etc/ceph/ceph.conf root@controller:/etc/ceph/ceph.conf #确保在controller节点上的glance安装了python-rbd[root@controller ~]# rpm -qa python-rbdpython-rbd-14.2.9-0.el7.x86_64#确保在computel01节点上的nova、cinder01节点上cinder都安装了ceph-common[root@computel01 ~]# rpm -qa | grep ceph-commonceph-common-14.2.9-0.el7.x86_64[root@cinder01 ~]# rpm -qa | grep ceph-commonceph-common-14.2.9-0.el7.x86_64
5.2 配置ceph认证※
通过cephx为Glance、cinder、cinder-backup创建用户
#[glance-api][root@cephnode01 ~]# ceph auth get-or-create client.glance mon 'profile rbd' osd 'profile rbd pool=images'[client.glance] key = AQAlXbZe0tNeKhAAjR9ltLbEVwuBucdfq6y0qg==#[cinder-volume][root@cephnode01 ~]# ceph auth get-or-create client.cinder mon 'profile rbd' osd 'profile rbd pool=volumes, profile rbd pool=vms, profile rbd pool=images'[client.cinder] key = AQDvfbZeBt/hMBAAJzGnZFq6/0gqn3Gb9Y8Rlw==#[cinder-backup][root@cephnode01 ~]# ceph auth get-or-create client.cinder-backup mon 'profile rbd' osd 'profile rbd pool=backups'[client.cinder-backup] key = AQAWfrZekCjyLxAAnKfEZsGa6rsfXHE7dv3q8Q==
查看认证列表
[root@cephnode01 ~]# ceph auth listinstalled auth entries: client.glance #glance连接ceph的认证信息 key: AQAlXbZe0tNeKhAAjR9ltLbEVwuBucdfq6y0qg== caps: [mon] profile rbd caps: [osd] profile rbd pool=images client.cinder #cinder连接ceph的认证信息 key: AQDvfbZeBt/hMBAAJzGnZFq6/0gqn3Gb9Y8Rlw== caps: [mon] profile rbd caps: [osd] profile rbd pool=volumes, profile rbd pool=vms, profile rbd pool=images client.cinder-backup #cinder-backup连接ceph的认证信息 key: AQAWfrZekCjyLxAAnKfEZsGa6rsfXHE7dv3q8Q== caps: [mon] profile rbd caps: [osd] profile rbd pool=backups
为glance、cinder和cinder-backup用户创建keyring文件
# ceph auth get-or-create client.glance | ssh root@controller sudo tee /etc/ceph/ceph.client.glance.keyring[client.glance] key = AQAlXbZe0tNeKhAAjR9ltLbEVwuBucdfq6y0qg==# ceph auth get-or-create client.cinder | ssh root@cinder01 sudo tee /etc/ceph/ceph.client.cinder.keyring[client.cinder] key: AQDvfbZeBt/hMBAAJzGnZFq6/0gqn3Gb9Y8Rlw==# ceph auth get-or-create client.cinder-backup | ssh root@cinder01 sudo tee /etc/ceph/ceph.client.cinder-backup.keyring[client.cinder-backup] key: AQAWfrZekCjyLxAAnKfEZsGa6rsfXHE7dv3q8Q==
**允许以OpenStack各用户权限访问Ceph集群 **
ssh root@controller sudo chown glance:glance /etc/ceph/ceph.client.glance.keyringssh root@cinder01 sudo chown cinder:cinder /etc/ceph/ceph.client.cinder.keyringssh root@cinder01 sudo chown cinder:cinder /etc/ceph/ceph.client.cinder-backup.keyring
为nova节点创建keyring文件
#controller节点ceph auth get-key client.cinder | ssh root@controller tee /etc/ceph/client.cinder.key#computel01节点ceph auth get-key client.cinder | ssh root@computel01 tee /etc/ceph/client.cinder.key
为nova上创建client.cinder用户的访问秘钥并添加到Libvirt守护进程
计算节点上的 Libvirt 进程在挂载或卸载一个由 Cinder 提供的 Volume 时需要访问 Ceph Cluster。所以需要创建 client.cinder 用户的访问秘钥并添加到 Libvirt 守护进程**。注意，在Controller和Computel01节点上都运行着nova-compute服务，所以在两个节点上的 Libvirt 都要添加**，而且都要添加同一个 Secret秘钥，即 cinder-volume 使用的 Secret秘钥。
需要将client.cinder用户的密钥存储在libvirt中 。libvirt进程需要它从Cinder附加块设备时访问集群
#生成随机 UUID，作为 Libvirt 秘钥的唯一标识#只需要生成一次，所有的 cinder-volume、nova-compute 都是用同一个 UUID。[root@computel01 ~]# uuidgen1c305557-2373-4e4b-a232-0e2a540cb5bb -----------------------------------#在两个nova计算节点上都执行下面的操作(controller/computel01)#如果没有virsh命令则下载libvirtyum -y install libvirt -y systemctl restart libvirtd systemctl enable libvirtd -----------------------------------#创建Libvirt秘钥文件cat > /etc/ceph/secret.xml <<EOF <secret ephemeral='no' private='no'> <uuid>1c305557-2373-4e4b-a232-0e2a540cb5bb</uuid> <usage type='ceph'> <name>client.cinder secret</name> </usage> </secret> EOF-----------------------------------#定义一个Libvirt秘钥[root@computel01 ~]# sudo virsh secret-define --file /etc/ceph/secret.xmlSecret 1c305557-2373-4e4b-a232-0e2a540cb5bb created -----------------------------------#设置秘钥的值为client.cinder用户的key，Libvirt凭此key就能以Cinder的用户访问Ceph Cluster[root@computel01 ~]# sudo virsh secret-set-value --secret 1c305557-2373-4e4b-a232-0e2a540cb5bb --base64 $(cat /etc/ceph/client.cinder.key)Secret value set-----------------------------------#查看每台nova上的秘钥清单[root@computel01 ~]# sudo virsh secret-list UUID Usage -------------------------------------------------------------------------------- 1c305557-2373-4e4b-a232-0e2a540cb5bb ceph client.cinder secret [root@controller ~]# sudo virsh secret-list UUID Usage -------------------------------------------------------------------------------- 1c305557-2373-4e4b-a232-0e2a540cb5bb ceph client.cinder secret
二、配置glance使用ceph rbd做为后端存储
Glance 为 OpenStack 提供镜像及其元数据注册服务，Glance 支持对接多种后端存储。与 Ceph 完成对接后，Glance 上传的 Image 会作为块设备储存在 Ceph 集群中。新版本的 Glance 也开始支持 enabled_backends 了，可以同时对接多个存储提供商。
写时复制技术
内核只为新生成的子进程创建虚拟空间结构，它们复制于父进程的虚拟空间结构，但是不为这些段分配物理内存，它们共享父进程的物理空间，当父子进程中有更改相应的段的行为发生时，再为子进程相应的段分配物理空间。写时复制技术大大降低了进程对资源的浪费。
1、备份glance-api的配置文件，以便于恢复
[root@controller ~]# cp /etc/glance/glance-api.conf /etc/glance/glance-api.conf.bak2
2、编辑/etc/glance/glance-api.conf配置文件
添加以下[glance_store]部分;连接至ceph
如果要启用映像的写时复制克隆，请在以下[DEFAULT]部分下添加
[root@controller ~]# vim /etc/glance/glance-api.conf[DEFAULT]show_image_direct_url = True #启用镜像的写时复制[glance_store]## Local File #注释安装时默认配置# stores = file,http# default_store = file# filesystem_store_datadir = /var/lib/glance/images/## Ceph RBDstores = rbd default_store = rbd rbd_store_pool = images rbd_store_user = glance rbd_store_ceph_conf = /etc/ceph/ceph.conf rbd_store_chunk_size = 8[paste_deploy]flavor = keystone
3、重启glance服务
[root@controller ~]# systemctl restart openstack-glance-api.servicelsof -i:9292

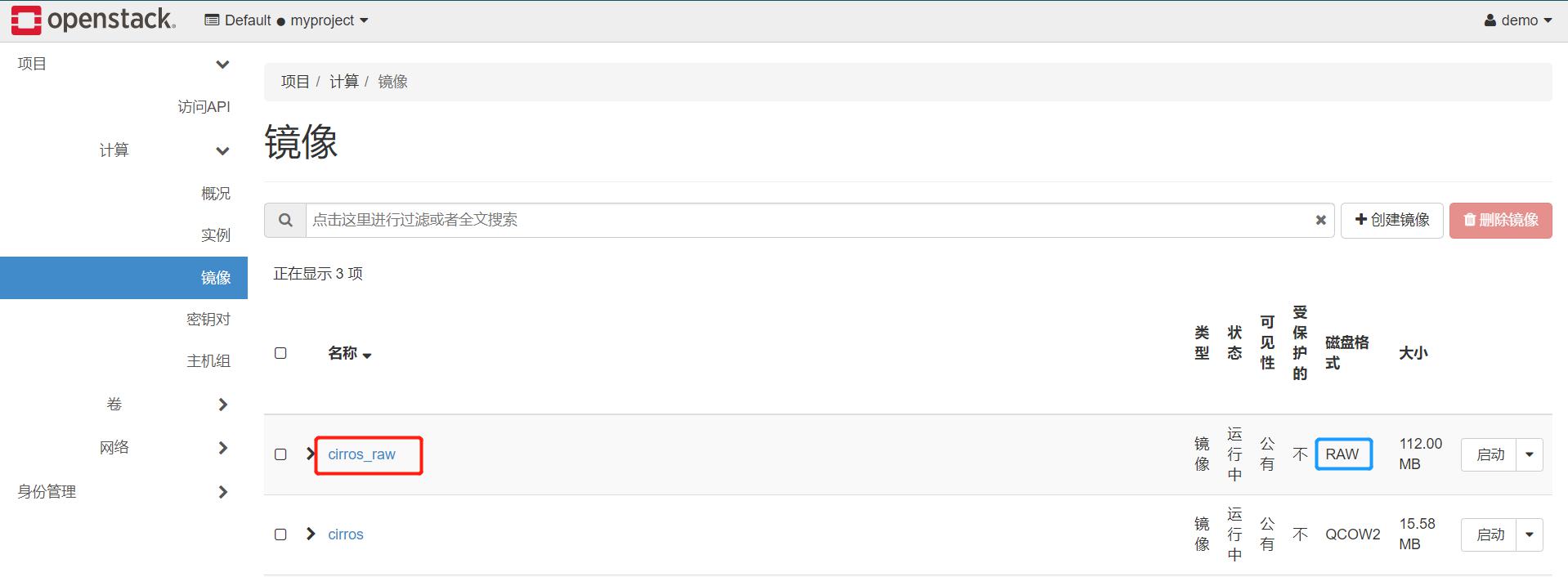

4、创建 Image镜像
对接 Ceph 之后，通常会以 RAW 格式创建 Glance Image，而不再使用 QCOW2 格式，否则创建虚拟机时需要进行镜像复制，没有利用 Ceph RBD COW 的优秀特性。
#从QEMU中检索块设备映像信息[root@controller tools]# qemu-img info cirros-0.5.1-x86_64-disk.img image: cirros-0.5.1-x86_64-disk.imgfile format: qcow2 virtual size: 112M (117440512 bytes)disk size: 16M cluster_size: 65536 Format specific information: compat: 1.1 lazy refcounts: false refcount bits: 16 corrupt: false-----------------------------------#将镜像从qcow2格式转换为raw格式[root@controller tools]# qemu-img convert -f qcow2 -O raw cirros-0.5.1-x86_64-disk.img cirros-0.5.1-x86_64-disk.raw[root@controller tools]# lscirros-0.5.1-x86_64-disk.img cirros-0.5.1-x86_64-disk.raw[root@controller tools]# qemu-img info cirros-0.5.1-x86_64-disk.raw image: cirros-0.5.1-x86_64-disk.rawfile format: raw virtual size: 112M (117440512 bytes)disk size: 17M -----------------------------------#上传镜像;查看glance和ceph联动情况[root@controller tools]# openstack image create --container-format bare --disk-format raw --file cirros-0.5.1-x86_64-disk.raw --unprotected --public cirros_raw+------------------+------------------------------------------------| Field | Value +------------------+------------------------------------------------| checksum | 01e7d1515ee776be3228673441d449e6 | container_format | bare | created_at | 2020-05-09T08:44:41Z | disk_format | raw | file | /v2/images/fd44ac54-1e77-4612-86c2-362c900a715a/file | id | fd44ac54-1e77-4612-86c2-362c900a715a | min_disk | 0 | min_ram | 0 | name | cirros_raw | owner | 5776e47671b1429e957ff78e667397c4 | properties | direct_url='rbd://a4c42290-00ac-4647...| protected | False | schema | /v2/schemas/image | size | 117440512 | status | active | tags | | updated_at | 2020-05-09T08:46:06Z | virtual_size | None | visibility | public +------------------+--------------------------------------------
5、查看镜像和glance池的数据
[root@cephnode01 my-cluster]# rbd ls imagesfd44ac54-1e77-4612-86c2-362c900a715a -----------------------------------[root@cephnode01 my-cluster]# rbd info images/fd44ac54-1e77-4612-86c2-362c900a715arbd image 'fd44ac54-1e77-4612-86c2-362c900a715a': size 112 MiB in 14 objects order 23 (8 MiB objects) snapshot_count: 1 id: 4f4363506f69c block_name_prefix: rbd_data.4f4363506f69c format: 2 features: layering, exclusive-lock, object-map, fast-diff, deep-flatten op_features: flags: create_timestamp: Sat May 9 16:44:48 2020 access_timestamp: Sat May 9 16:44:48 2020 modify_timestamp: Sat May 9 16:45:49 2020 -----------------------------------[root@cephnode01 my-cluster]# rbd snap ls images/fd44ac54-1e77-4612-86c2-362c900a715aSNAPID NAME SIZE PROTECTED TIMESTAMP 4 snap 112 MiB yes Sat May 9 16:46:03 2020 -----------------------------------[root@cephnode01 my-cluster]# rbd info images/fd44ac54-1e77-4612-86c2-362c900a715a@snap-----------------------------------[root@cephnode01 my-cluster]# rados ls -p imagesrbd_id.fd44ac54-1e77-4612-86c2-362c900a715a #glance中的数据存储到了ceph文件系统中rbd_data.4f4363506f69c.0000000000000002 rbd_data.4f4363506f69c.0000000000000007 rbd_data.4f4363506f69c.0000000000000001 rbd_data.4f4363506f69c.000000000000000c rbd_data.4f4363506f69c.0000000000000006 rbd_header.4f4363506f69c rbd_directory rbd_data.4f4363506f69c.0000000000000004 rbd_info rbd_data.4f4363506f69c.000000000000000d rbd_data.4f4363506f69c.000000000000000b rbd_data.4f4363506f69c.0000000000000000 rbd_object_map.4f4363506f69c.0000000000000004 rbd_object_map.4f4363506f69c rbd_data.4f4363506f69c.0000000000000005 rbd_data.4f4363506f69c.0000000000000009 rbd_data.4f4363506f69c.0000000000000008 rbd_data.4f4363506f69c.000000000000000a rbd_data.4f4363506f69c.0000000000000003
当创建一个 raw 格式的 Glance Image 时，在 Ceph 中实际执行了一下步骤：
在 Pool images 中新建了一个 {glance_image_uuid} 块设备，块设备的 Object Size 为 8M，对应的 Objects 有 2 个，足以放下 cirros.raw 13M 的数据。
对新建块设备执行快照。
对该快照执行保护。
rbd -p ${GLANCE_POOL} create --size ${SIZE} ${IMAGE_ID}rbd -p ${GLANCE_POOL} snap create ${IMAGE_ID}@snap
rbd -p ${GLANCE_POOL} snap protect ${IMAGE_ID}@snap当删除一个 raw 格式的 Glance Image 时，在 Ceph 中实际执行了一下步骤：
先取消快照保护
对快照执行删除
对镜像执行删除
rbd -p ${GLANCE_POOL} snap unprotect ${IMAGE_ID}@snap
rbd -p ${GLANCE_POOL} snap rm ${IMAGE_ID}@snap
rbd -p ${GLANCE_POOL} rm ${IMAGE_ID}总结
将openstack的glance的数据存储到ceph中是一种非常好的解决方案，既能够保障镜像数据的安全性，同时glance和nova在同个存储池中，能够基于copy-on-write(写时复制)的方式快速创建虚拟机，能够在秒级为单位实现vm的创建。
三、使用Ceph作为Cinder的后端存储
1、备份glance-api的配置文件，以便于恢复
[root@cinder01 ~]# cp /etc/cinder/cinder.conf /etc/cinder/cinder.conf.bak2
2、编辑 /etc/cinder/cinder.conf 配置文件
[root@cinder01 ~]# vim /etc/cinder/cinder.conf[DEFAULT]... enabled_backends = ceph glance_api_version = 2 glance_api_servers = http://controller:9292#[lvm] #注释掉默认的#volume_driver = cinder.volume.drivers.lvm.LVMVolumeDriver#volume_backend_name = lvm#volume_group = cinder-volumes#iscsi_protocol = iscsi#iscsi_helper = lioadm[ceph]volume_driver = cinder.volume.drivers.rbd.RBDDriver volume_backend_name = ceph rbd_pool = volumes rbd_ceph_conf = /etc/ceph/ceph.conf rbd_flatten_volume_from_snapshot = falserbd_max_clone_depth = 5 rbd_store_chunk_size = 4 rados_connect_timeout = -1#用于cephx的身份验证rbd_user = cinder#cinder用户访问ceph集群所使用的Secret UUIDrbd_secret_uuid = 1c305557-2373-4e4b-a232-0e2a540cb5bb
3、重启 cinder-volume 服务

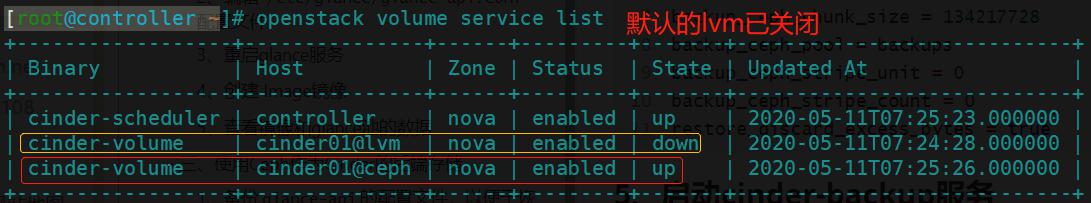

[root@cinder01 ~]# systemctl restart openstack-cinder-volume#到openstack的控制节点查看[root@controller ~]# openstack volume service list
4、对接Cinder Backup
cinder备份服务需要安装对象存储服务;这里未配置对象存储。所以可忽略此步骤
[root@cinder01 ~]# vim /etc/cinder/cinder.conf[DEFAULT]... backup_driver = cinder.backup.drivers.ceph backup_ceph_conf = /etc/ceph/ceph.conf backup_ceph_user = cinder-backup backup_ceph_chunk_size = 134217728 backup_ceph_pool = backups backup_ceph_stripe_unit = 0 backup_ceph_stripe_count = 0 restore_discard_excess_bytes = true#启动cinder-backup服务systemctl enable openstack-cinder-backup.service systemctl restart openstack-cinder-backup.service

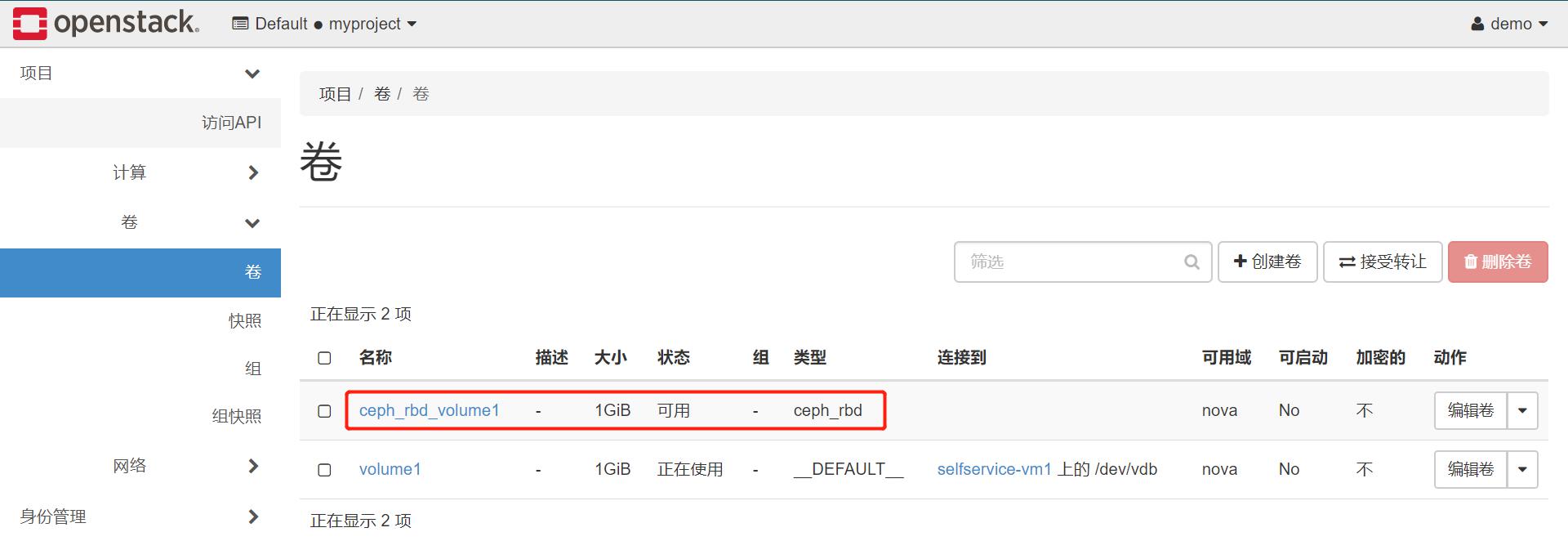

5、创建空白卷Volume
#创建一个RBD Type Volume的卷类型（如果默认lvm卷开启，可以创建一个本地的lvm卷类型）[root@controller ~]# source admin-openrc [root@controller ~]# openstack volume type create --public --property volume_backend_name="ceph" ceph_rbd+-------------+--------------------------------------+| Field | Value |+-------------+--------------------------------------+| description | None || id | 6242e7fd-9f5e-4d30-9635-b5af59db6a8c || is_public | True || name | ceph_rbd || properties | volume_backend_name='ceph' |+-------------+--------------------------------------+#查看卷类型[root@controller ~]# openstack volume type list+--------------------------------------+----------------+-----------+| ID | Name | Is Public |+--------------------------------------+----------------+-----------+| 6242e7fd-9f5e-4d30-9635-b5af59db6a8c | ceph_rbd | True || a8faf593-aadd-4af7-b5fd-5f405641710e | VolumeType_web | True || 11be6491-4272-4416-92f0-f4286735901e | __DEFAULT__ | True |+--------------------------------------+----------------+-----------+#在demo用户下创建一个1GB的卷[root@controller ~]# source demo-openrc [root@controller ~]# openstack volume create --type ceph_rbd --size 1 ceph_rbd_volume1+---------------------+--------------------------------------+| Field | Value |+---------------------+--------------------------------------+| attachments | [] || availability_zone | nova || bootable | false || consistencygroup_id | None || created_at | 2020-05-11T07:52:49.000000 || description | None || encrypted | False || id | 7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5 || multiattach | False || name | ceph_rbd_volume1 || properties | || replication_status | None || size | 1 || snapshot_id | None || source_volid | None || status | creating || type | ceph_rbd || updated_at | None || user_id | b9649ec199ce402aabc4bbfd4ca00144 |+---------------------+--------------------------------------+#查看创建好的卷(volume1卷为opensttack环境中默认创建的lvm卷类型)[root@controller ~]# openstack volume list+--------------------------------------+------------------+-----------+------+------------------------------------------+| ID | Name | Status | Size | Attached to |+--------------------------------------+------------------+-----------+------+------------------------------------------+| 7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5 | ceph_rbd_volume1 | available | 1 | || 75011e60-33fc-4061-98dc-7028e477efc9 | volume1 | in-use | 1 | Attached to selfservice-vm1 on /dev/vdb |+--------------------------------------+------------------+-----------+------+------------------------------------------+
6、在ceph上查看 Pool images 的 Objects信息
[root@cephnode01 my-cluster]# rbd ls volumesvolume-7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5[root@cephnode01 my-cluster]# rbd info volumes/volume-7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5rbd image 'volume-7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5': size 1 GiB in 256 objects order 22 (4 MiB objects) snapshot_count: 0 id: 828ff738f5ca2 block_name_prefix: rbd_data.828ff738f5ca2 format: 2 features: layering, exclusive-lock, object-map, fast-diff, deep-flatten op_features: flags: create_timestamp: Mon May 11 15:52:53 2020 access_timestamp: Mon May 11 15:52:53 2020 modify_timestamp: Mon May 11 15:52:53 2020#查看volumes的pool池[root@cephnode01 my-cluster]# rados ls -p volumesrbd_id.volume-7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5 rbd_directory rbd_info rbd_object_map.828ff738f5ca2 rbd_header.828ff738f5ca2
创建一个空白 Volume，相当于执行了以下指令
rbd -p ${CINDER_POOL} create --new-format --size ${SIZE} volume-${VOLUME_ID}7、从镜像创建Volume
从镜像创建 Volume 的时候应用了 Ceph RBD COW Clone 功能，这是通过glance-api.conf [DEFAULT] show_image_direct_url = True 来开启。这个配置项的作用是持久化 Image 的 location，此时 Glance RBD Driver 才可以通过 Image location 执行 Clone 操作。并且还会根据指定的 Volume Size 来调整 RBD Image 的 Size。
[root@controller ~]# openstack image listfd44ac54-1e77-4612-86c2-362c900a715a : cirros_raw [root@controller ~]# openstack volume create --image fd44ac54-1e77-4612-86c2-362c900a715a --type ceph_rbd --size 1 cirros_raw_image[root@controller ~]# openstack volume list+--------------------------------------+------------------+-----------+------+------------------------------------------+| ID | Name | Status | Size | Attached to |+--------------------------------------+------------------+-----------+------+------------------------------------------+| 0290e529-943f-49ef-ab1e-d016fa981c68 | cirros_raw_image | available | 1 | || 7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5 | ceph_rbd_volume1 | available | 1 | || 75011e60-33fc-4061-98dc-7028e477efc9 | volume1 | in-use | 1 | Attached to selfservice-vm1 on /dev/vdb |+--------------------------------------+------------------+-----------+------+------------------------------------------+#查看Pool images的Objects信息[root@cephnode01 my-cluster]# rbd ls volumesvolume-0290e529-943f-49ef-ab1e-d016fa981c68 # cirros_raw_imagevolume-7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5 # ceph_rbd_volume1[root@cephnode01 my-cluster]# rbd info volumes/volume-0290e529-943f-49ef-ab1e-d016fa981c68rbd image 'volume-0290e529-943f-49ef-ab1e-d016fa981c68': size 1 GiB in 256 objects order 22 (4 MiB objects) snapshot_count: 0 id: 740ae31c440b3 block_name_prefix: rbd_data.740ae31c440b3 format: 2 features: layering, exclusive-lock, object-map, fast-diff, deep-flatten op_features: flags: create_timestamp: Mon May 11 16:11:36 2020 access_timestamp: Mon May 11 16:11:36 2020 modify_timestamp: Mon May 11 16:11:36 2020 parent: images/fd44ac54-1e77-4612-86c2-362c900a715a@snap overlap: 112 MiB [root@cephnode01 my-cluster]# rados ls -p volumesrbd_object_map.740ae31c440b3 rbd_id.volume-7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5 rbd_directory rbd_children rbd_info rbd_object_map.828ff738f5ca2 rbd_id.volume-0290e529-943f-49ef-ab1e-d016fa981c68 rbd_header.740ae31c440b3 rbd_header.828ff738f5ca2
从镜像创建一个 Volume，相当于执行了以下指令
rbd clone ${GLANCE_POOL}/${IMAGE_ID}@snap ${CINDER_POOL}/volume-${VOLUME_ID}if [[ -n "${SIZE}" ]]; then
rbd resize --size ${SIZE} ${CINDER_POOL}/volume-${VOLUME_ID}fi8、创建 Volume 的快照
[root@controller ~]# openstack volume snapshot create --volume cirros_raw_image cirros_raw_image-snap01+-------------+--------------------------------------+| Field | Value |+-------------+--------------------------------------+| created_at | 2020-05-11T08:24:34.805571 || description | None || id | 769938a7-3fa7-4918-9051-a2d71e1cc1d4 || name | cirros_raw_image-snap01 || properties | || size | 1 || status | creating || updated_at | None || volume_id | 0290e529-943f-49ef-ab1e-d016fa981c68 |+-------------+--------------------------------------+#查看快照列表[root@controller ~]# openstack volume snapshot list+--------------------------------------+-------------------------+-------------+-----------+------+| ID | Name | Description | Status | Size |+--------------------------------------+-------------------------+-------------+-----------+------+| 769938a7-3fa7-4918-9051-a2d71e1cc1d4 | cirros_raw_image-snap01 | None | available | 1 |+--------------------------------------+-------------------------+-------------+-----------+------+#在ceph上查看cirros_raw_image卷创建的快照[root@cephnode01 my-cluster]# rbd snap ls volumes/volume-0290e529-943f-49ef-ab1e-d016fa981c68SNAPID NAME SIZE PROTECTED TIMESTAMP 4 snapshot-769938a7-3fa7-4918-9051-a2d71e1cc1d4 1 GiB yes Mon May 11 16:24:36 2020#查看快照详细信息[root@cephnode01 my-cluster]# rbd info volumes/volume-0290e529-943f-49ef-ab1e-d016fa981c68@snapshot-769938a7-3fa7-4918-9051-a2d71e1cc1d4rbd image 'volume-0290e529-943f-49ef-ab1e-d016fa981c68': size 1 GiB in 256 objects order 22 (4 MiB objects) snapshot_count: 1 id: 740ae31c440b3 block_name_prefix: rbd_data.740ae31c440b3 format: 2 features: layering, exclusive-lock, object-map, fast-diff, deep-flatten op_features: flags: create_timestamp: Mon May 11 16:11:36 2020 access_timestamp: Mon May 11 16:11:36 2020 modify_timestamp: Mon May 11 16:11:36 2020 protected: True parent: images/fd44ac54-1e77-4612-86c2-362c900a715a@snap overlap: 112 MiB
对一个 Volume 执行快照，就相当于执行了以下指令
rbd -p ${CINDER_POOL} snap create volume-${VOLUME_ID}@snapshot-${SNAPSHOT_ID}rbd -p ${CINDER_POOL} snap protect volume-${VOLUME_ID}@snapshot-${SNAPSHOT_ID}
9、创建 Volume 备份
如果说快照时一个时间机器，那么备份就是一个异地的时间机器，它具有容灾的含义。所以一般来说 Ceph Pool backup 应该与 Pool images、volumes 以及 vms 处于不同的灾备隔离域。
一般的，备份具有以下类型：
全量备份
增量备份
差异备份
#未测试
四、使用Ceph作为Nova的后端存储
Nova是OpenStack中的计算服务。 Nova存储与默认的运行虚拟机相关联的虚拟磁盘镜像，在
/var/lib/nova/instances/%UUID目录下。Ceph是可以直接与Nova集成的存储后端之一。
在虚拟磁盘映像的计算节点上使用本地存储有一些缺点：
镜像存储在根文件系统下。大镜像可能导致文件系统被填满，从而导致计算节点崩溃。
计算节点上的磁盘崩溃可能导致虚拟磁盘丢失，因此无法进行虚拟机恢复。
Nova 为 OpenStack 提供计算服务，对接 Ceph 主要是希望将实例的系统磁盘文件储存到 Ceph 集群中。与其说是对接 Nova，更准确来说是对接QEMU-KVM/libvirt，因为 librbd 早已原生集成到其中。
1、对接Nova Computel01节点
修改在每个计算节点上的 Ceph Client 配置，启用 RBD 客户端缓存和管理 Socket，有助于提升性能和便于查看故障日志
#controller、computel01#创建以下路径的和权限mkdir -p /var/run/ceph/guests/ /var/log/qemu/chown qemu:libvirt /var/run/ceph/guests /var/log/qemu/#编辑配置文件vim /etc/ceph/ceph.conf[client]rbd cache = truerbd cache writethrough until flush = trueadmin socket = /var/run/ceph/guests/$cluster-$type.$id.$pid.$cctid.asok log file = /var/log/qemu/qemu-guest-$pid.log rbd concurrent management ops = 20
2、修改 Nova 配置文件
#Controller节点上的nova.conf配置文件[root@controller ~]# vim /etc/nova/nova.conf[libvirt]virt_type = qemu images_type = rbd images_rbd_pool = vms images_rbd_ceph_conf = /etc/ceph/ceph.conf rbd_user = cinder rbd_secret_uuid = 1c305557-2373-4e4b-a232-0e2a540cb5bb disk_cachemodes="network=writeback"inject_password = falseinject_key = falseinject_partition = -2 live_migration_flag="VIR_MIGRATE_UNDEFINE_SOURCE,VIR_MIGRATE_PEER2PEER,VIR_MIGRATE_LIVE,VIR_MIGRATE_PERSIST_DEST"-----------------------------------#computel01节点上的nova.conf配置文件[root@computel01 ~]# vim /etc/nova/nova.conf[libvirt]virt_type = qemu images_type = rbd images_rbd_pool = vms images_rbd_ceph_conf = /etc/ceph/ceph.conf rbd_user = cinder rbd_secret_uuid = 1c305557-2373-4e4b-a232-0e2a540cb5bb disk_cachemodes="network=writeback"inject_password = falseinject_key = falseinject_partition = -2 live_migration_flag="VIR_MIGRATE_UNDEFINE_SOURCE,VIR_MIGRATE_PEER2PEER,VIR_MIGRATE_LIVE,VIR_MIGRATE_PERSIST_DEST"#重启计算节点的nova计算服务[root@computel01 ~]# systemctl restart openstack-nova-compute.servicesystemctl restart openstack-glance-api systemctl restart openstack-nova-compute systemctl restart openstack-cinder-volume systemctl restart openstack-cinder-backup#暂不启动

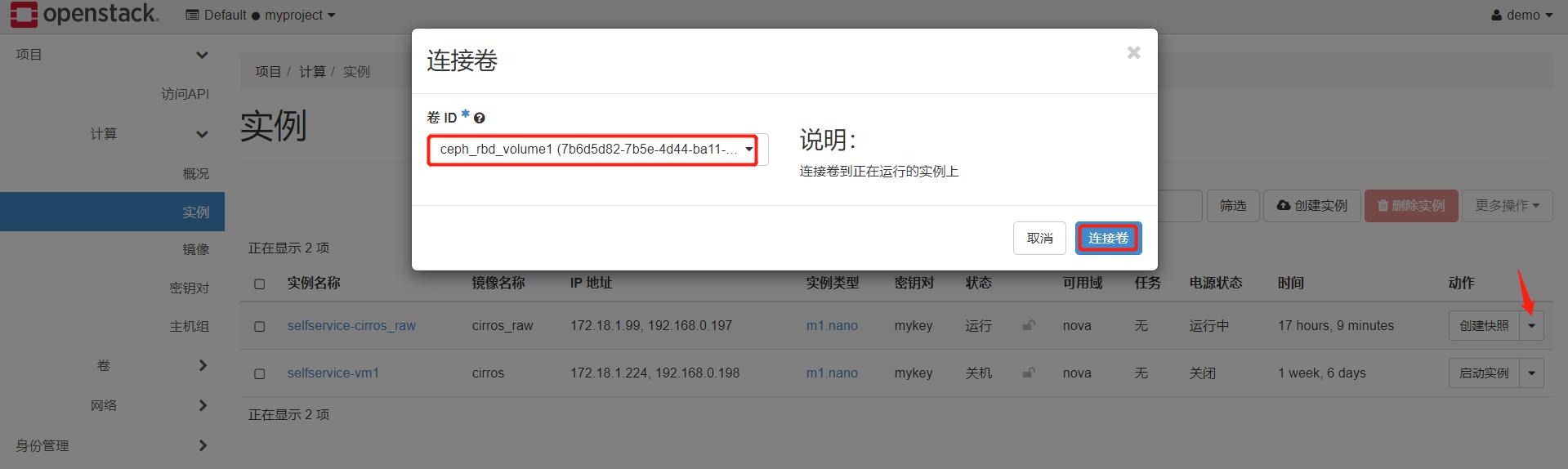

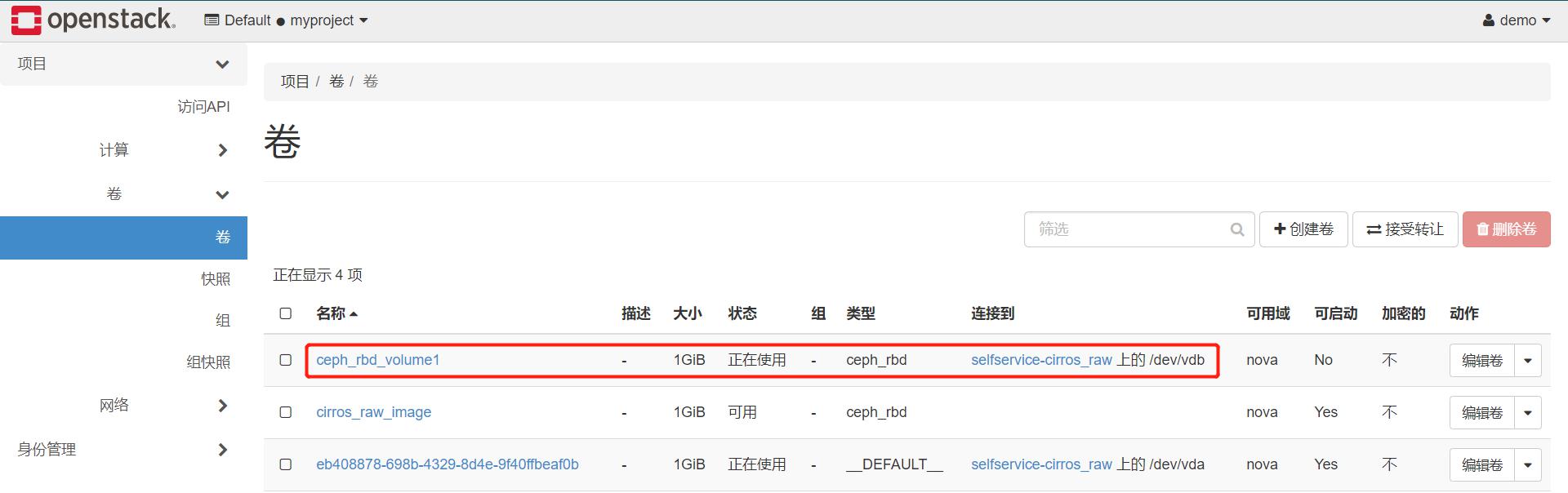

3、创建虚拟机并挂载卷
#查看网络[root@controller ~]# openstack network list+--------------------------------------+-------------+--------------------------------------+| ID | Name | Subnets |+--------------------------------------+-------------+--------------------------------------+| 926859eb-1e48-44ed-9634-bcabba5eb8b8 | provider | afa6ca79-fe10-4ada-967a-dad846b69712 || a7acab4d-3d4b-41f8-8d2c-854fb1ff6d4f | selfservice | bf3c165c-384d-4803-b07e-f5fd0b30415b |+--------------------------------------+-------------+--------------------------------------+[root@controller ~]# openstack image list+--------------------------------------+---------------------------+--------+| ID | Name | Status |+--------------------------------------+---------------------------+--------+| fd44ac54-1e77-4612-86c2-362c900a715a | cirros_raw | active |+--------------------------------------+---------------------------+--------+[root@controller ~]# openstack flavor list| 0 | m1.nano | 128 | 1 | 0 | 1 | True || 1 | m2.nano | 1024 | 2 | 0 | 1 | True |#创建实例:如果报错可在dashboard界面上进行创建[root@controller ~]# openstack server create --image fd44ac54-1e77-4612-86c2-362c900a715a --flavor m2.nano \--nic net-id=a7acab4d-3d4b-41f8-8d2c-854fb1ff6d4f --security-group default --key-name mykey selfservice-cirros_raw+-----------------------------+---------------------------------------------------+| Field | Value |+-----------------------------+---------------------------------------------------+| OS-DCF:diskConfig | MANUAL || OS-EXT-AZ:availability_zone | || OS-EXT-STS:power_state | NOSTATE || OS-EXT-STS:task_state | scheduling || OS-EXT-STS:vm_state | building || OS-SRV-USG:launched_at | None || OS-SRV-USG:terminated_at | None || accessIPv4 | || accessIPv6 | || addresses | || adminPass | yqKV4tVNMPah || config_drive | || created | 2020-05-11T09:32:47Z || flavor | m2.nano (1) || hostId | || id | 05621371-203f-466e-80d0-ea0e49cc6660 || image | cirros_raw (fd44ac54-1e77-4612-86c2-362c900a715a) || key_name | mykey || name | selfservice-cirros_raw || progress | 0 || project_id | 6535a5a0ef0c4e9caa42912d02bd7d54 || properties | || security_groups | name='d47cab9e-1a97-44ee-9ce6-2311ec5344b2' || status | BUILD || updated | 2020-05-11T09:34:11Z || user_id | b9649ec199ce402aabc4bbfd4ca00144 || volumes_attached | |+-----------------------------+--------------------------------------------------+#将卷附加到selfservice-cirros_raw实例,可以在dashboard界面操作#先查看卷[root@controller ~]# openstack volume list+--------------------------------------+------------------+-----------+------+------------------------------------------+| ID | Name | Status | Size | Attached to |+--------------------------------------+------------------+-----------+------+------------------------------------------+| 0290e529-943f-49ef-ab1e-d016fa981c68 | cirros_raw_image | available | 1 | || 7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5 | ceph_rbd_volume1 | available | 1 | |#查看实例详情[root@controller ~]# openstack server show selfservice-cirros_raw+-----------------------------+----------------------------------------------------------+| Field | Value |+-----------------------------+----------------------------------------------------------+| OS-DCF:diskConfig | AUTO || OS-EXT-AZ:availability_zone | nova || OS-EXT-STS:power_state | Running || OS-EXT-STS:task_state | None || OS-EXT-STS:vm_state | active || OS-SRV-USG:launched_at | 2020-05-11T09:48:43.000000 || OS-SRV-USG:terminated_at | None || accessIPv4 | || accessIPv6 | || addresses | selfservice=172.18.1.99, 192.168.0.197 || config_drive | || created | 2020-05-11T09:47:07Z || flavor | m1.nano (0) || hostId | d7f29c07fd62aea996db001357a7e214724779ce8674bc5990567fd0 || id | b61f5d6d-f0c8-410e-9d0f-7fb378632481 || image | || key_name | mykey || name | selfservice-cirros_raw || progress | 0 || project_id | 6535a5a0ef0c4e9caa42912d02bd7d54 || properties | || security_groups | name='default' || status | ACTIVE || updated | 2020-05-12T01:40:21Z || user_id | b9649ec199ce402aabc4bbfd4ca00144 || volumes_attached | id='eb408878-698b-4329-8d4e-9f40ffbeaf0b' |+-----------------------------+----------------------------------------------------------+#将卷附加到selfservice-cirros_raw实例,可以在dashboard界面操作[root@controller ~]# openstack server add volume selfservice-cirros_raw ceph_rbd_volume1[root@controller ~]# openstack volume list+--------------------------------------+------------------+-----------+------+-------------------------------------------------+| ID | Name | Status | Size | Attached to |+--------------------------------------+------------------+-----------+------+-------------------------------------------------+| eb408878-698b-4329-8d4e-9f40ffbeaf0b | | in-use | 1 | Attached to selfservice-cirros_raw on /dev/vda || 0290e529-943f-49ef-ab1e-d016fa981c68 | cirros_raw_image | available | 1 | || 7b6d5d82-7b5e-4d44-ba11-c17769a9bdf5 | ceph_rbd_volume1 | in-use | 1 | Attached to selfservice-cirros_raw on /dev/vdb |
